Au80Sn20/Au88Ge12/Au97Si3 solder preforms
作者：Admin 来源：BMC 发布时间：2011-07-18Gold based Solder Preforms
BMC provides kinds of Gold based eutectic alloy solder preforms, such as Au80Sn20, Au88Ge12, Au96.85Si3.15, Au80Cu20.

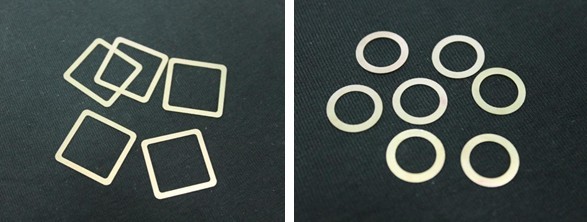

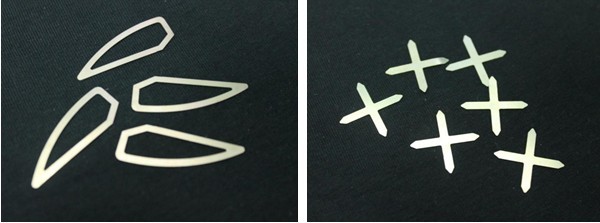

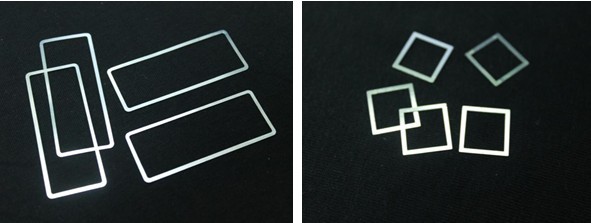

Au80Sn20 Solder Preforms
Au88Ge12 Solder Preforms
Au96.85Si3.15 Solder Preforms
Au80Sn20 Solder Preforms：
Au80Sn20 eutectic solder alloy is widely used in optoelectronic packaging, high-power LED and high reliability electronic devices in military/medical/aerospace field. It has high oxidation resistance, high creep resistance, good wettability, strong welding joint and good thermal conductivity. It is usually manufactured as solder preforms in the connection areas of many package modes, especially the fields requiring high reliability and sealability. Its majority ;properties as below table:
|
Alloy
|
Solidus
(°C) |
Liquidus
(°C) |
Suggested soldering Temperature
(°C) |
density
(g/cm3) |
tensile strength
(MPa) |
Thermal conductivity
(w/m·°C) |
coefficient of thermal expansion
(×10-6/°C) |
|
Au80Sn20
|
280
|
280
|
>320
|
14.51
|
276
|
57
|
16
|
Since Au80Sn20 is eutectic alloy, solidus and liquidus are the same. From its phase diagram, we can see that the melt point would change a lot once composition changes, so that impact soldering quality. Hence composition control is pretty key for final products.
BMC is able to provide any customized shape/thickness Au80Sn20 solder preforms. Parameters of Au80Sn20 solder preforms as below table:
|
Properties of Au80Sn20 solder preform
|
|
|
Au80Sn20 impurity
|
<0.1% (wt%)
|
|
Min. Melt point drift
|
+/-1°C
|
|
Min. thickness
|
0.015mm+/-0.005mm
|
|
Min. tolerance
|
0.005mm
|
|
Storage and pack of Au80Sn20 solder preform
|
|
|
Storage temperature
|
25+-3°C
|
|
Storage humidity
|
<40RH
|
|
Pack type
|
Customized packing
|
|
Welding parameters of Au80Sn20 solder preform
|
|
|
Weld type
|
No flux needed，but welding under reducing atmosphere or vacuum can provide better solder quality
|
|
Preheat temperature
|
No need due to no flux added
|
|
Preheat time
|
N/A
|
|
Welding temperature
|
>320°C
|
|
Welding time
|
>10s
|
